Mechanical Vacuum Leak Detector

The ADR-50C provides basic, reliable, versatile on line inspection and control of sealed containers with metal, or metalized closures of 2 to 6 1/4 inches (50-165 mm) in diameter. The ADR-50C identifies and rejects all common mechanical and process related defects such as missing & misapplied lids, low/high internal pressure or vacuum deviations, knocked down flanges, "leakers", "swells", etc.

Description:

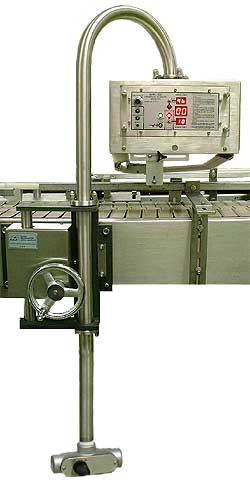

The ADR-50C Universal Closure Monitor provides an extremely easy-to-use format with our unsurpassed accuracy for online measurement of internal pressure or vacuum of metal, glass or plastic containers. Reliable operation of 1200 c.p.m with ejections from the line of "out of limit containers" assures the quality of your product in the marketplace, as well as timely alarm if your process strays. Installation is simple and fast. The unit mounts to your conveyor and is available for on-line mount (ADR-50C Standard unit) & (ADR-50CP Micro Adjustable) or Remote mount (ADR-50CR Remote).  The ADR-50CR uses a stainless steel remote cabinet that can be mounted up to 30 feet (9 meters) away from the sensing head that is mounted on the line.  There are no extras to buy.

Features

• Solid State Digital Electronics with Deflection Sensing
• Large LED 2-Digit Display of Container Lid Position
• LED 2-Digit Display of Upper & Lower Limit Lid Positions
• Adjustable Infrared Position Sensing with movable Light Source and Photocell Sensor
• 10 Turn Precision Potentiometer Calibration Control
• Toggle Switch adjustable upper & Lower Limit Lid Positions
• Reject Delay Control providing Electrical Rejector Adjustment
• Adjustable Reject Pulse Width
• Reject Disable Switch
• Independent LED's indicate active: Position Sense (Green), Reject (Orange), Upper Limit Excursion (Red) and Lower Limit Excursion (Red)
• Self-contained instrument mounts directly to customer's conveyor, instrument housing/sensors and control panel supported over the conveyor with stainless steel "cane"
• Stainless Steel Instrument Housing, black hard-coat anodized aluminum mounting brackets, NEMA Type 6 Rating Waterproof Electronics Enclosure
• Handwheel Height Adjustment System
• Standard Speed Rejector ejects defects off line. Maximum recommended rejector line speed is 800 cpm. Higher speed rejectors available
• Installation & Operation manual with Troubleshooting Guide
• Specifications:
  • Required Line Space: 18 inches (460mm)
  • Online Housing Dimensions: 11 3/4" x 10 1/4" x 6 1/2" (300mm x 260mmx 165mm)
  • Electric Power: 115/230 volt, single phase, 50/60Hz; other power ranges available
  • Air: 80-120 psi @ 0.3 c.f.m.; (5.4-8.2 atm)
  • Air Cylinder: 1 1/8" (29 mm) bore x 1" (25mm) stroke
  • Shipping weight: 62 lb. (28 kg.) Export: 92 lb. (42 kg.)
  • ADR-50C Manual
  • ADR-50CR (50C Remote) Manual

Conversions:

• ADR-50C2D = ADR-50C convert to the ADR-50D
• ADR-50C2DU = ADR-50C convert to the ADR-50DU
• ADR-50D2DU = ADR-50D convert to the ADR-50DU
