ADR 50DD Advanced Universal Top & Bottom Closure Monitor

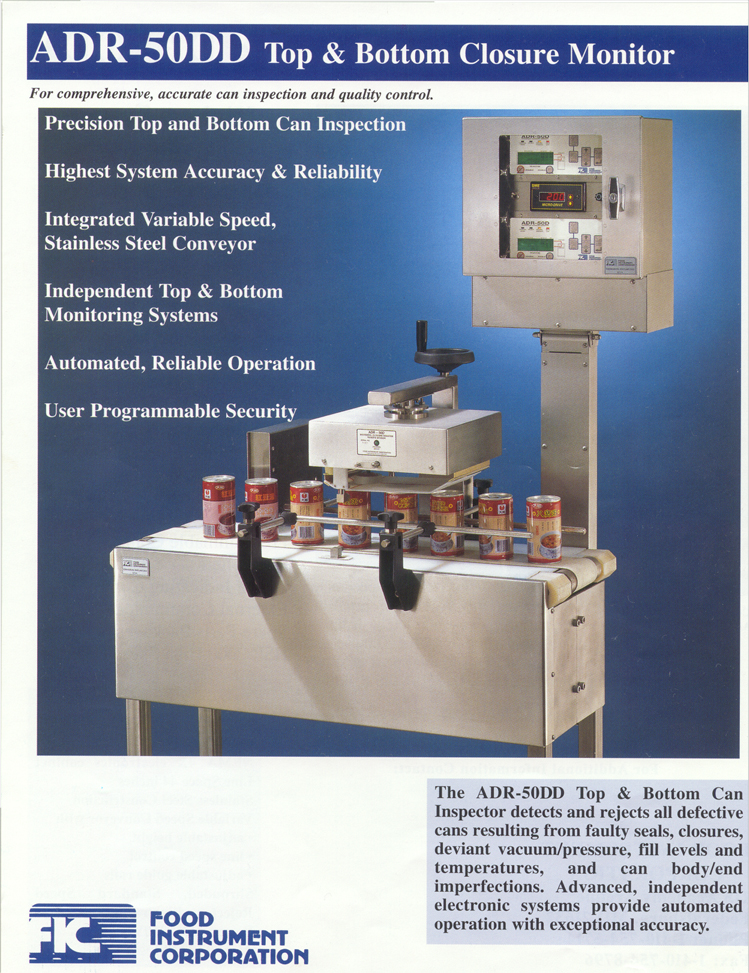

Click here for a brochure front.

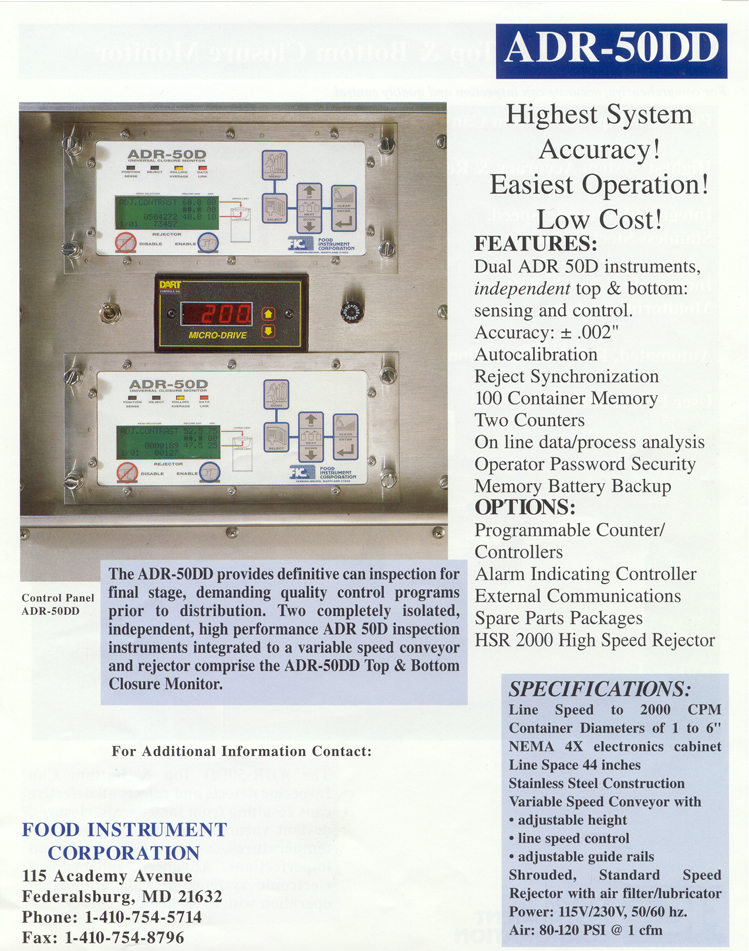

Click here for a brochure back.
The ADR-50DD provides comprehensive, precisely accurate on-line inspection and control over vacuum, pressure and container leak defects of sealed containers with metal, or metalized closures of 1 to 6 inches (25 to 150 mm) in diameter. Dual ADR-50D inspection instruments provide true variable speed independent TOP and BOTTOM precision identification and control over all common mechanical and process related defects such as missing & misapplied lids (cocked caps, loose lids, damaged lids, misplaced covers), low/high internal pressure or vacuum deviations, false seams, knocked down flanges, pin holes, sideseam leakers ("leakers"), "swells", dents, deformed containers and defects resulting from extreme deviations in fill level (empty containers, and/or over and underfills) and temperature (containers filled at other than normal fill temperatures).

ADR-50DD Specifications, Features and Capacities:
The ADR-50DD system integrates two complete, independent ADR-50D's each with advanced digital, microprocessor-based universal closure monitors to perform simultaneous Top and Bottom inspection with a variable speed conveyor which in combination with the sensing inspection head reference strip positions superbly stabilized containers yielding unsurpassed accuracy, precision, reliability and Total Quality Control. The ADR-50DD is ideally equipped to provide definitive container inspection for the most demanding quality control programs.


  • Top & bottom sensing
  • Advanced Microprocessor-based Digital Electronics with Multiple Point Deflection Sensing/Profiling
  • Automatic Container Calibration
  • 3 Integrated Counters providing total containers processed, rejected and net throughput
  • Rolling Average Process Trend Analysis with digital LCD readout & visual LED status displays, including visual (LED) "Alert" warning system display at process excursions, an Automatic Recalibration ("tracking") at acceptable changes in process variables
  • Operations Security: multilevel, programmable Password controlled access for individuals or groups
  • Tiered operation Menu with simplified, 7 key membrane control panel operation, Separate dedicated Rejector Operation Controls
  • Large, bright, backlit 80 Character LCD Main Display
  • Independent LEDs indicate active: Position Sense, Reject, Rolling Average and Data Link
  • Internal Battery prevents file and data loss at source power interruption.
  • Infrared Position Sensors use a fixed mounting system, centered to the sense probe axis and require no readjustment to individual container or closure diameter.
  • Micro-Adjustable Sense Probe Positioning
  • Locking NEMA Type 4X Rating Stainless steel sealed cabinet housing for instrument electronic displays, processing and controls, black hard-coat anodized aluminum mounting brackets, NEMA Type 6 Rating Waterproof Electronics Enclosure
  • Handwheel Vertical Height Adjustment System
  • Stainless Steel Shrouded Standard Speed Rejector (with air filter/lubricator) ejects defects off line. Maximum recommended rejector line speed is 800cpm. Higher speed rejectors available.
  • Variable speed conveyor with line speed display, stainless steel construction, belt drive, adjustable height and integrated, adjustable guide rails
  • Installation & Operation Manual with Troubleshooting Guide
  • Specifications:
    • Required Line Space: 44 inches (1.2m)
    • Online Housing Dimensions: 44" x 21" x (customer specified height ±2"), (1.2m x 535mm x specified)
    • Electric Power: 115/230 Volt, single phase, 50/60Hz; other power ranges available.
    • Air: 80-120 psi @ 1 c.f.m.; (5.4-8.2 atm)
    • Air Cylinder: 1 1/8" (29mm) bore x 1" (25mm) stroke
    • Shipping Weight: 595 lb. (270 kg.), Export 595 lb. (270 kg.)
